Paging

Paging is a method of limiting the amount of data displayed on one screen and separating the data for each page.

You can expect improved performance by reducing the amount of data displayed at one time.

This section explains how to realize paging.

As an example, I will explain while creating an application that performs paging.

Create a table

First, create the following table.

m_city

Column	Data type
city_code	String
city_name	String
prefectures	String
classification	String
population	Integer
changes	Integer
rate_of_changes	Number(with decimal point)

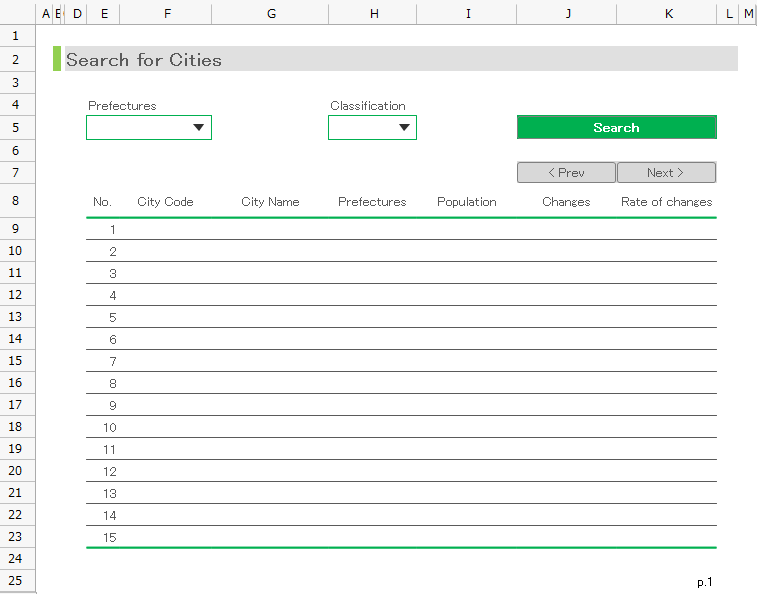

Create a layout

Create a sheet with the following layout.

In this sheet, data that matches the search condition (prefecture, classification) when search button is pressed is searched from "m_city".

Matching data is displayed in ascending order of "city code", and 15 records are displayed per page.

Also, pressing the "<Prev" button displays the previous 15 records, and pressing the "Next>" button will display the next 15 records.

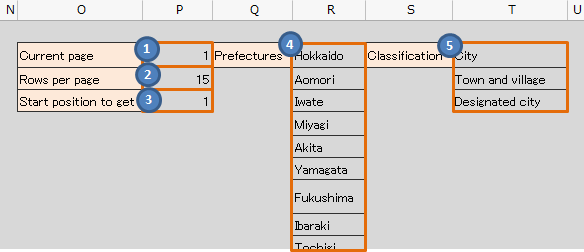

Set values for control

Set values and list contents to be used for search processing and paging processing as follows.

[1] Current page

It holds the page currently being displayed. Set 1 as the initial value.

[2] Rows per page

It holds the number of records to display per page. In this example, we set 15 to display 15 records per page.

[3] Start position to get

It is the value that becomes the start position to get in the data displayed on the current page.

This value is determined by "Current page" and "Start position to get". In this example, set the following expression.

=([Current page]-1)*[Start position to get]+1 (In this example, set "=(P2-1)*P3+1".)

[4] Prefectures

Set the contents of the prefecture list of search conditions.

[5] Classification

Sets the contents of the classification list of the search condition.

Create an action set

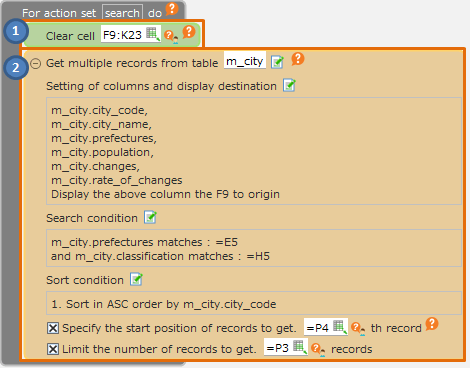

Create "search" action set

Create an action set to get only the data of "Current page" out of data matching the search condition.

Create as follows.

1. Place an action to clear the last search result.
2. Place "Get multiple records from table" action. Set each item as follows.

• Table to be get - Specify "m_city".

• Columns and display destination - Depending on the layout, specify the starting point cell and the column to display.

• Search condition - Specify the selection value of the prefecture list (E5 cell) and the classification list (H5 cell) as condition.

• Sort condition - Specify to be in ascending order of "city_code".

• Start position of records to get - Specify the control value "Start position to get" (P4 cell).

• Limit number of records to get - Since the number of records displayed on one page is the limit number to get, specify the control value "Rows per page" (P3 cell).

  See also

  For details on how to get multiple records, see Get Multiple Data From Table.

Create "next" action set

Create an action set to get records for the next page.

Create as follows.

1. Count up "Current page".
2. Call the "search" action set. In the "search" action set, you will get the records of "Current page". Therefore, by counting up the value, you get the records of the next page.

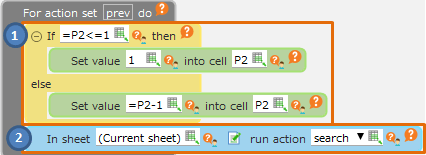

Create "prev" action set

Create an action set to get records for the previous page.

Create as follows.

1. Countdown "Current page". If it is 1 or less, set it to 1.
2. Call the "search" action set. In the "search" action set, you will get the records of "Current page". Therefore, by counting down the value, you get the records of the previous page.

Run the application

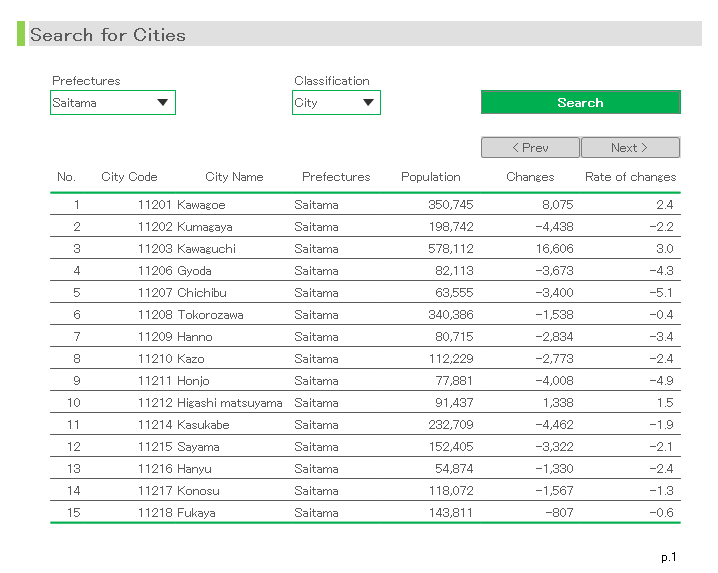

1. When you search, only 15 records matching the conditions will be displayed.

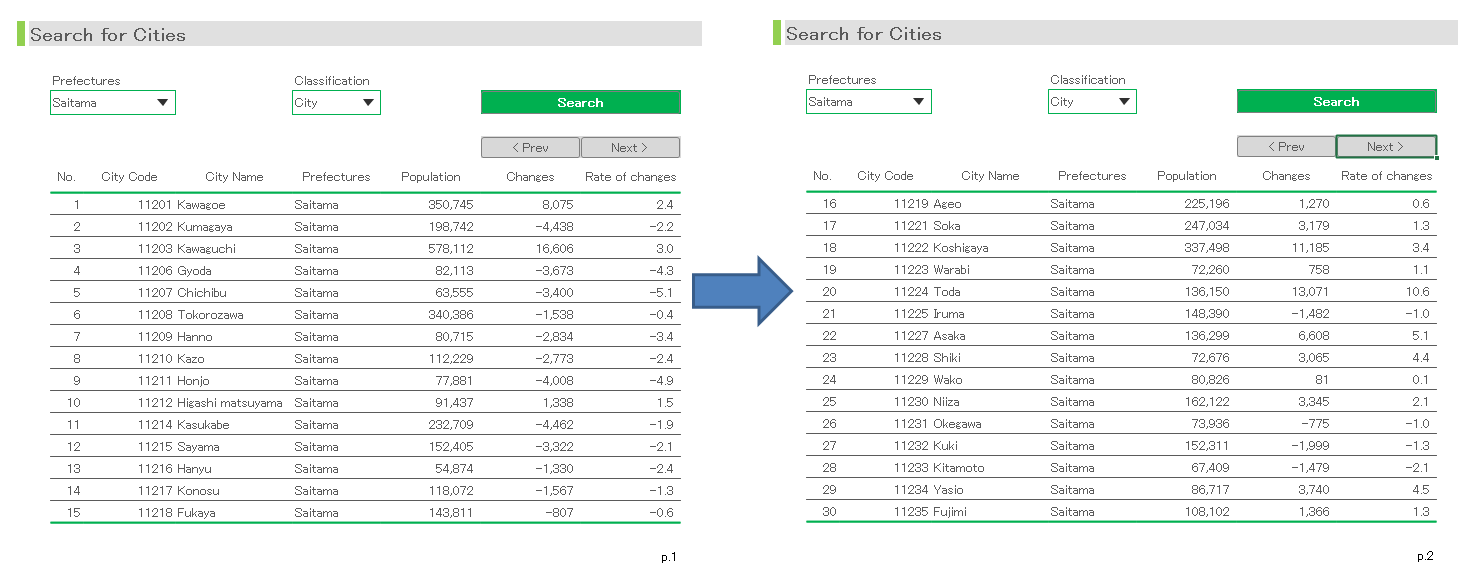

2. When you press the "Next>" button, the next 15 records will be displayed.

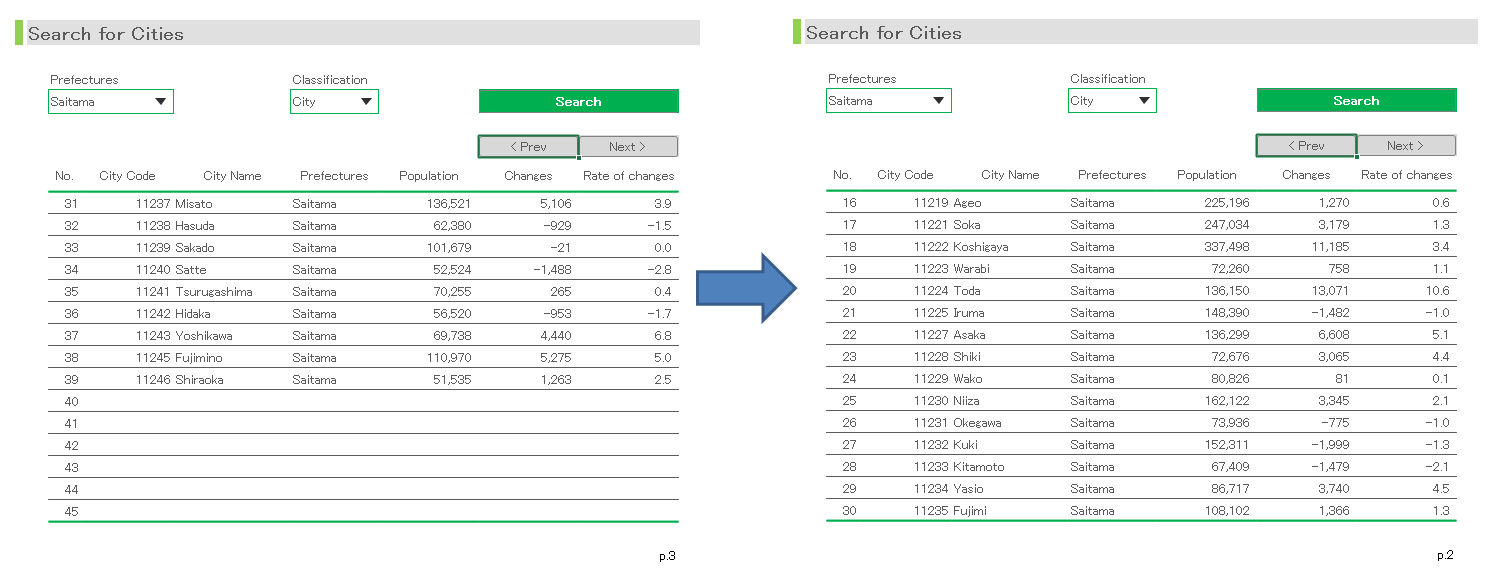

3. When you press the "<Prev" button, the previous 15 records will be displayed.
