Wait

You can wait for a certain period of time, until a particular image is displayed, or until a particular image disappears from the screen.

Wait for a certain period of time

  1. Drag the "Wait" action from the "Robot" tab and set it to the edit area.

  2. Set the waiting time.

    ../../_images/wt_1.en.png

Waiting for the status of the screen to change

  1. Drag the "Wait until image appears" action from the "Robot" tab and set it to the edit area.

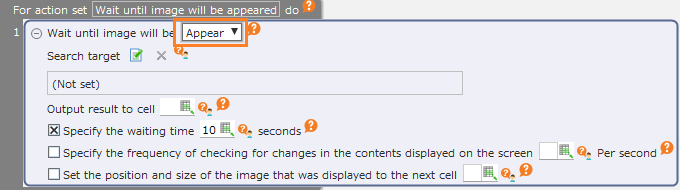

  2. Select the conditions for cancelling the wait.

    ../../_images/im_1.en.png

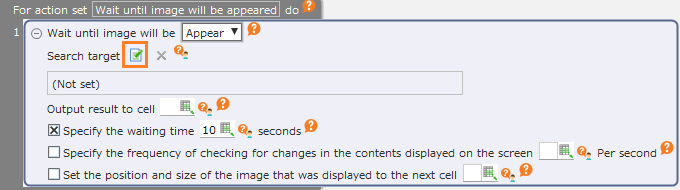

  3. Click the "Specify the operation target" button of the "Search target".

    ../../_images/im_2.en.png

  4. In the "Specify the operation target" dialog, specify the standby image and then click the "Apply"button.

    ../../_images/imgonly_1.en.png

    See also

    Refer to "Specify operation target on how to set the operation target.

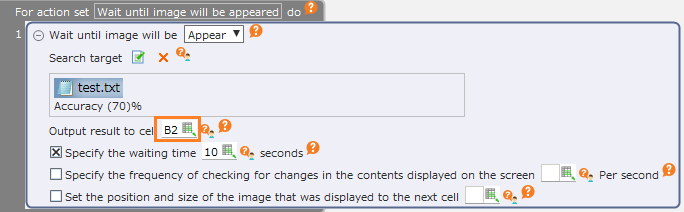

  5. Set the cell where the awaited results will be set.

    ../../_images/im_3.en.png

    Tip

    Set "true" if the set conditions are met and "false" if not.

  6. Set the waiting time.

    ../../_images/im_4.en.png

    Tip

    By unchecking the "Specify the waiting time" check button, it will wait for a maximum of 10 seconds.

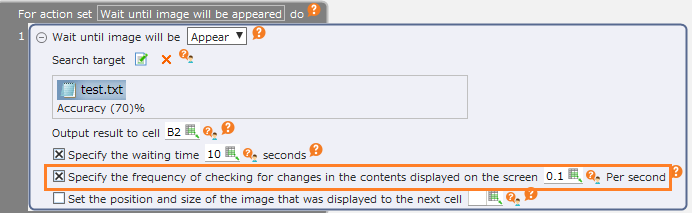

  7. By checking off the "Specify the frequency of checking for changes in the contents displayed on the screen", you can set the frequency at which the changes on status of the screen will be checked.

    ../../_images/im_5.en.png

    Tip

    When omitting the setting, check if the image is displayed every 0.3 seconds or so.

  8. By checking off the "Set the position and size of the image that was displayed to the next cell" check button, the information on the position and size where the image was actually displayed will be set into the cell.

    ../../_images/im_6.en.png

    See also

    The position information that has been set can be used as the position information of the operation target of another action. Please refer to "Use the coordinates set in the cell" for details.
